Finishing
5-Axes CNC Machining Facility
A. Model & Make
FAMS-PG.ESI TDCC, FAMS-PG-Canada
Specifications
- Table Size : 1600 mm dia (Rotary Table)
- X, Y & Z Axes: 800 x 800 x 500 mm
- Spindle Tilting ( angle): -15 to+90o
- Spindle Speed : 48,000 rpm
- Control System: GE Fanuc 15i-M (Five Axes)
Details
The 5-axes CNC machining centre is a custom built unit which can be operated with and with out coolant. This machine is especially used for green machining of ceramics after they are pre-sintered. The advantage of green machining is mainly to increase the productivity and reduce the machining cost. This machine can also perform grinding operation on the sintered ceramic parts with higher spindle rpm and can achieve final surface finish of 0.1m. This machine is capable of carrying out profile generation like parabolid, spherical, asperical, hyperboloid surfaces within ±10 mm accuracies.
Centre
Centre for Non-Oxide Ceramics

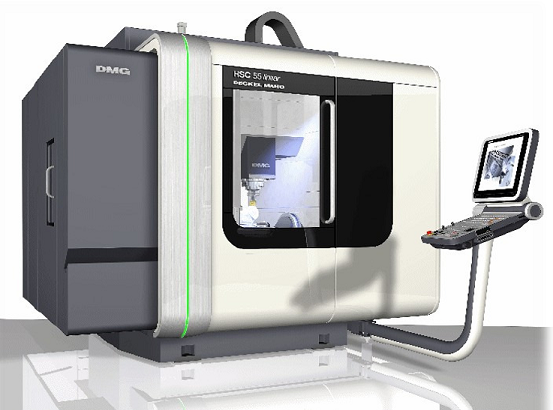

B. Model & Make
DMG, HSC 55 Linear
Specifications
- 5-Axes Simultaneous Milling with high dynamic and low vibration Direct drives
- Linear motors with acceleration more than 2 g
- 80 m/min Rapid move with direct absolute scales
- Motor spindle with 42,000 rpm
- Axis travel sizes: X = 450 mm, Y = 600 mm, Z = 400 mm
- C-Axis 360o (continuous), A-Axis +10 to -110o (continuous)
- Position accuracy: < 5 m for X/Y/Z, < 7 arc-seconds A/C axis
Details
The 5-axes CNC machining centre is capable of running at high speeds up to 42,000 rpm with and without coolant. The machine is being exclusively used for testing of coated tools under high speed dry conditions (green machining). The advantage of green machining is mainly to increase the productivity and reduce the machining cost. One of the main highlights of this CNC system is its high Speed Cutting in highest precision.
Centre
Centre for Engineered Coatings
5 Axis CNC
Ceramic Grinding and Polishing Machine
Model & Make
Struers, USA
Specifications
Standard ceramographic preparations with smart dosing
Details
A semi-automatic grinding and polishing machine with an automatic suspension dispenser is used for the grinding and polishing of ceramic samples.
Centre
Centre for Ceramic Processing
Ceramic grinding and polishing machine
High Speed Abrasive Cutter
Model & Make
Abrasmatic 300 cutter; Buehler, USA
Specifications
- Wheel dia: 300mm
- Capable of cutting samples of >100mm height
Details Dry and wet ceramic/metal cutting for green and sintered bodies
Centre
Centre for Ceramic Processing
High speed abrasive cutter

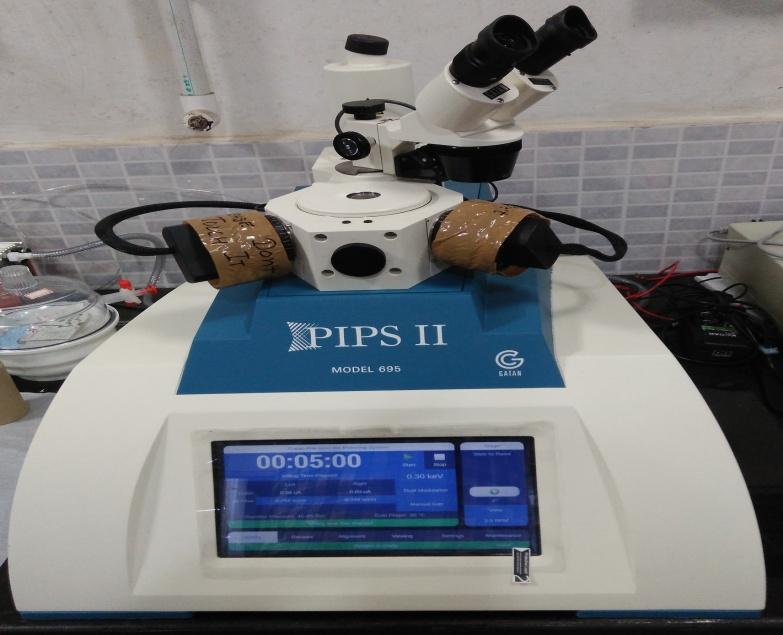

PIPS II system
Model
Metrohm, Switzerland
Make
California, USA
Specifications
- Type of Beam: Argon beam
- Digital Micrograph software
- 10” color touch screen
Details
To Ion Polish the TEM samples
Centre
Centre for Automotive Energy Materials

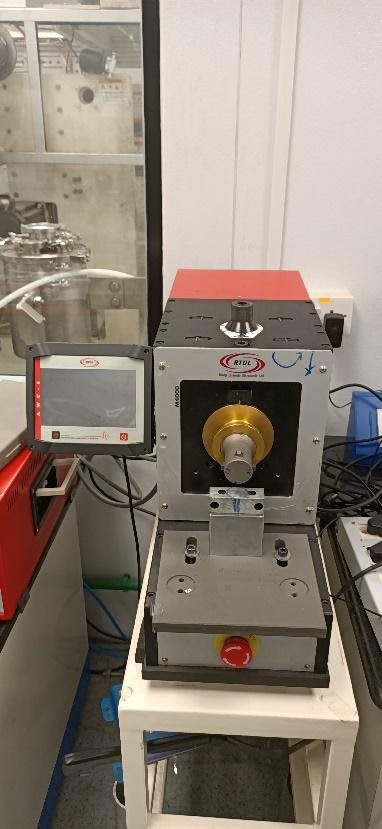

Ultrasonic Metal welding machine
Model and Make:
M4000 & Roop Telesonic Ultrasonix Limited, India
Specifications
- Nominal Frequency : 20 to 30 kHz (variable depending on the thickness)
- Power output : 3 to 3.5 KW
- Operable Pressure : 5 to 8 bar / clean and dry air
- Power Supply : 200~240 V AC, single phase, 15A
- Weld force : ~ 0 to ~ 4000 N (variable)
- Horn dimensions : 5 mm x 5 mm
- Welding area : 5 mm x 5 mm
- Welding thickness : 1 mm (max)
Details
Ultrasonic metal welding Machine (USMW) is used to weld the tabs to the electrodes of batteries. It is capable of welding similar/dissimilar welding of thin metal foils/current collectors like Aluminum, Copper, Nickel and stainless steel. Ultrasonic metal welding machine have Pneumatic Press, Generator, Converter and microprocessor or PC controller unit with suitable software.
Centre
Centre for Automotive Energy Materials
Ultrasonic Metal welding machine

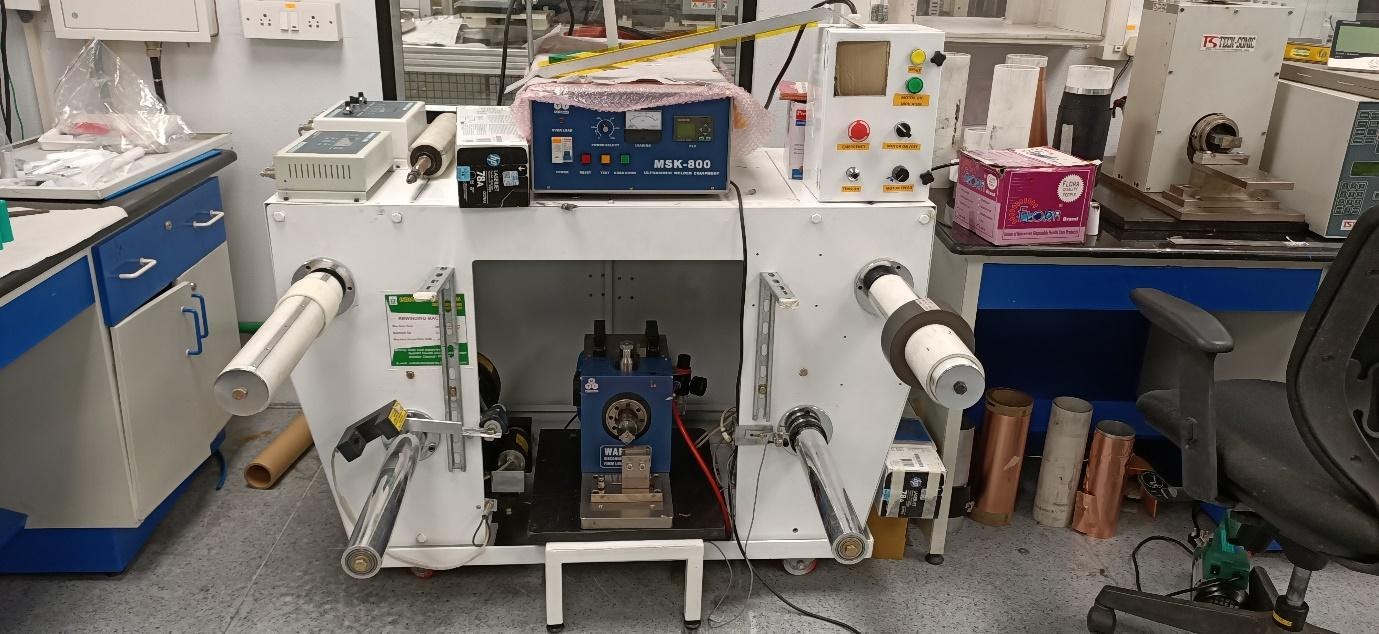

Winding and Unwinding Machine
Model and Make:
India Tech Industries, Chennai, India
Specifications
- Capable of winding and unwinding for aluminium and copper foils
- Number of winding roller: 1 no (Length: 300 mm, Closed Diameter: 75 mm, Expanded Diameter: 79 mm)
- Number of unwinding roller: 1 no (Length: 300 mm, Closed Diameter: 75 mm, Expanded Diameter: 79 mm)
- Equipped with electric web guiding system
- Line tension (variable): 0.2 N to 10 N
- Line speed (variable): 0.1-10 m/min
- Digital count meter for recording electrode length with auto stop option
Details
For rewinding of current collectors (Cu/Al), electrodes and separators
For welding tabs for cylindrical/prismatic cells at exact points on the electrode
Centre
Centre for Automotive Energy Materials
